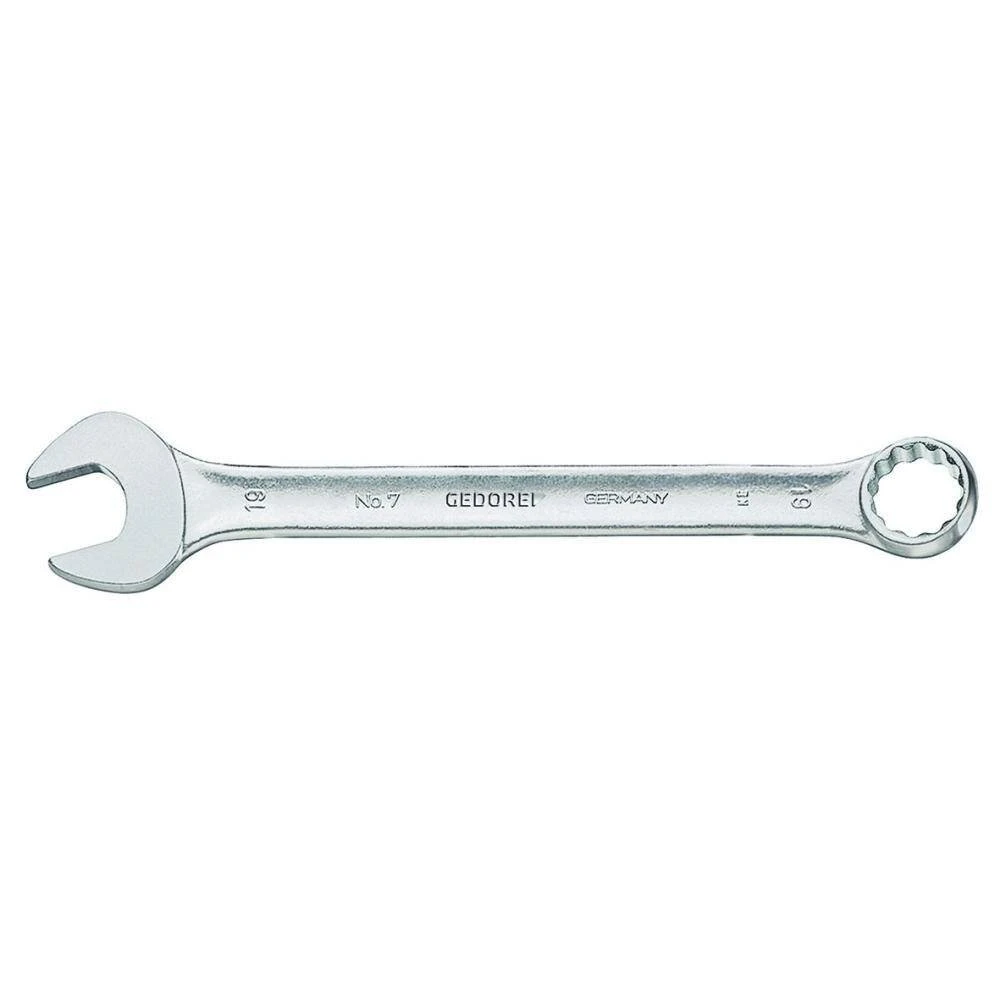

Gedore 7 Series Imperial Combination Spanner Wrench 7/8″ AF

Description

• Product code: 1436767.
• Model/series: 7 series.
• Acc. to DIN 3113, Form A, ISO 3318, ISO 7738
• Chrome-vanadium steel 31CrV3, chrome-plated
• Carefully forged and professionally machined
• Slim jaw and jaw walls make this spanner lighter overall
• Jaw: ground precisely to exact nominal size for optimum contact areas
• Ring: 15° offset from shaft, with UD profile for gentle transmission of force
• Overloading indicated by deformation
• Secure grip thanks to hollow shaft – very ergonomic and handy
• Glare-free look due to matt chrome
• Designed for universal use
• Top-grade industrial quality for the hardest of continuous use.

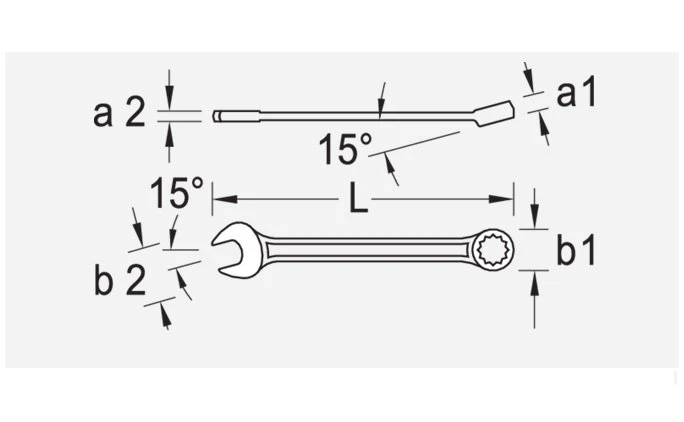

• Length: 262mm.
• Weight: 0.192kg.
• A1: 13mm.
• A2: 7.2mm.
• B1 : 32mm.
• B2: 48mm.
